**Mag, 180Kg, SM - Mag Lock, 180Kg, 350lbs, Surface Mounted

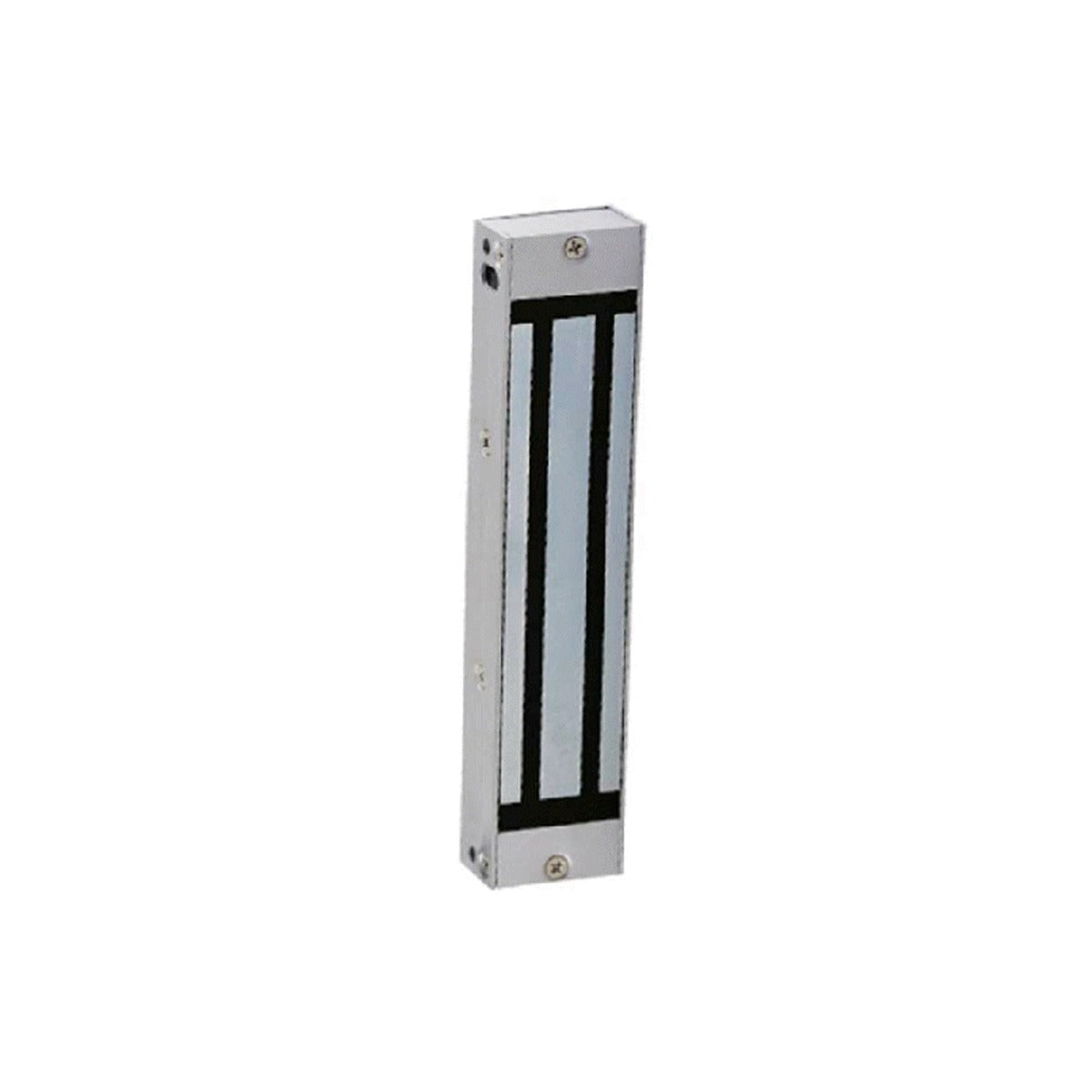

**180KG Surface Mounted Electromagnetic Mag Lock

Secure your access control system with this compact and reliable 180KG surface mounted electromagnetic lock. Designed for single-door applications, this mag lock provides a strong holding force of up to 180kg (350lbs), making it ideal for wooden, metal, glass, and fire-rated doors.

Featuring a durable anodized aluminum housing and fail-safe operation, the lock automatically releases when power is removed, ensuring safety compliance for emergency exits and access-controlled environments. Its slim surface-mounted design allows for quick and easy installation on a wide range of door types.

This unit is supplied without a ZL bracket, making it suitable for installations where standard mounting is required or existing brackets are already in place. ZL bracket can be purchased sepperatly.

Features

• 180KG (350lbs) holding force
• Surface mounted design
• Fail-safe operation (unlocks when power is removed)
• Suitable for wooden, glass, metal, and fireproof doors
• Durable anodized aluminum housing
• Low maintenance with no moving parts
• Compatible with most access control systems
• Compact and slim profile
• ZL bracket not included

Specifications

• Holding Force: 180KG / 350lbs
• Voltage: 12VDC / 24VDC
• Lock Dimensions: 170mm × 41mm × 21mm
• Armature Plate Dimensions: 130mm × 31mm × 10mm
• Mounting Type: Surface Mount
• Finish: Anodized Aluminum
• Application: Single Door Access Control

Ideal for offices, apartment buildings, security gates, retail stores, and commercial access control installations.
